| Quantity: | |
|---|---|
| Product Name | Aliuminum Bar/ Aluminum Sheet/ Aluminum Coil / Aluminum Pipe | |
| Aluminum Bar | ||
| Standard | ASTM B221M, GB/T 3191, JIS H4040,etc. | |
| Material | 5052,5652, 5154, 5254, 5454, 5083, 2014,2014A,2214,2017,2017A,2117 | |
| 5086, 5056,5456, 2024, 2014, 6061, 6063,6082, etc. | ||
| Diameter | 6-800mm | |
| Length | 2m,3m,5.8m,6m,or as required | |
| Surface | Mill finish,polished,anodizing,brushing,sand blasting,powder coating,etc. | |
| Aluminum Sheet/Coil | ||
| Thickness | 0.15-200mm or as requeted | |
| Width | 1000mm, 1219mm, 1250mm, 1500mm,or as customer's request | |
| Length | 1000mm,1500mm,2000mm,or as as customer's request | |
| Material | 1050,1060,1100,3003,3004,3105,5052,5005,5083,6061,6063,7075,etc. | |
| Temper | O, H12, H14, H18, H22, H24, H32, H34, H36,T3,T5,T6,etc. | |
| Surface | painting, anti-rust or as customer's request | |

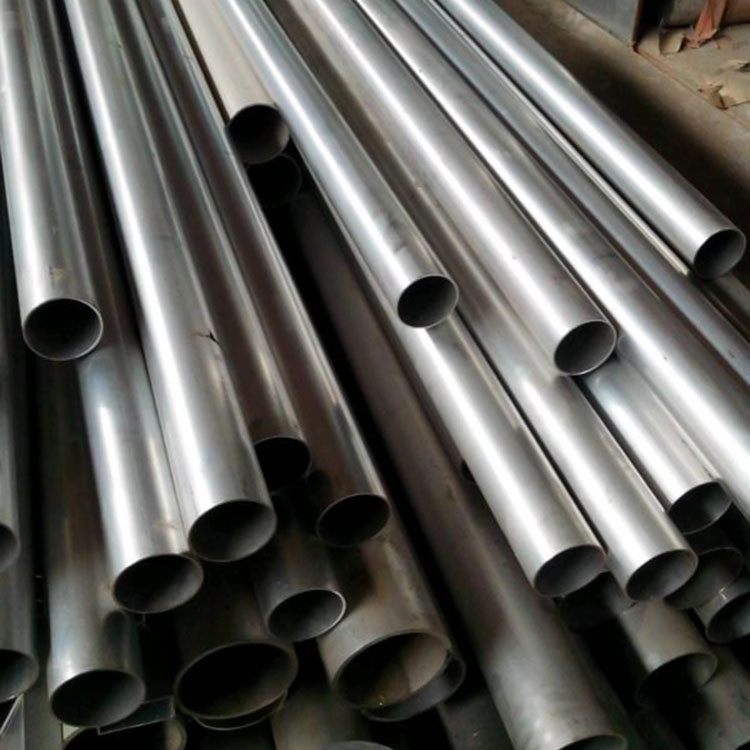

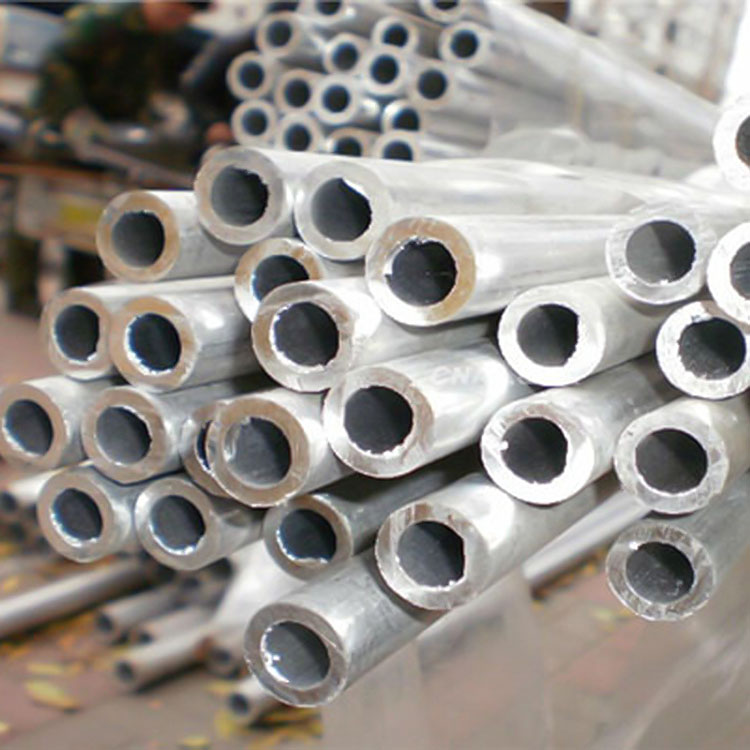

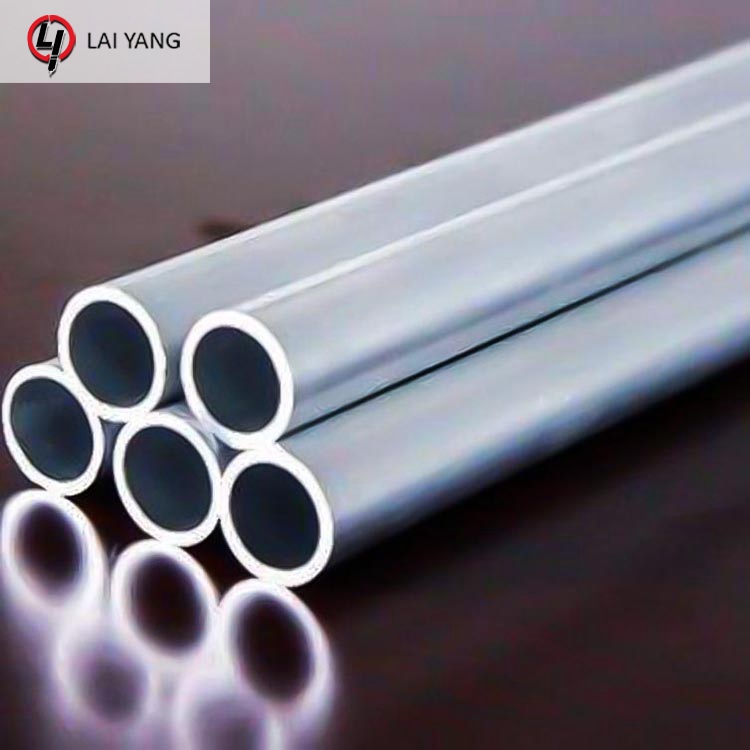

| Aluminum Pipe | ||
| Specification for round pipe | OD | 15mm-160mm |
| WT | 1-40mm | |
| Length | 1-12m | |
| Specification for square pipe | SIZE | 7X7mm- 150X150 mm |
| WT | 1-40mm | |
| Length | 1-12m | |
| Application | 1) Kitchenware, food and chemical products processing and storage devices; | |
| 2) Aircraft fuel tanks, oil pipe, rivets, wire; | ||
| 3) Cans cover, car body panels, steering plates, stiffeners, brackets and other components; | ||
| 4) Manufacturing trucks, tower building, ship, train, furniture, machinery parts, precision machining with the tubes, rods, shaped, sheet metal. | ||
| Mechanical Property | ||||||||
| ALUMINUM ALLOY | Grade | Normal Temper | Temper | Tensile Strength N/mm² | Yield Strength N/mm² | Elongation% | Brinell Hardness HB | |
| Plate | Bar | |||||||
| 1XXX | 1050 | O,H112,H | O | 78 | 34 | 40 | - | 20 |
| 1060 | O,H112,H | O | 70 | 30 | 43 | - | 19 | |
| Al-Cu (2XXX) | 2019 | O,T3,T4,T6,T8 | T851 | 450 | 350 | 10 | - | - |
| 2024 | O,T4 | T4 | 470 | 325 | 20 | 17 | 120 | |
| Al-Mn (3XXX) | 3003 | O,H112,H | O | 110 | 40 | 30 | 37 | 28 |
| 3004 | O,H112,H | O | 180 | 70 | 20 | 22 | 45 | |
| Al-Si (4XXX) | 4032 | O,T6,T62 | T6 | 380 | 315 | - | 9 | 120 |
| Al-Mg (5XXX) | 5052 | O,H112,H | H34 | 260 | 215 | 10 | 12 | 68 |
| 5083 | O,H112,H | O | 290 | 145 | - | 20 | - | |
| Al-Mg-Si (6XXX) | 6061 | O,T4,T6,T8 | T6 | 310 | 275 | 12 | 15 | 95 |
| 6063 | O,T1,T5,T6,T8 | T5 | 185 | 145 | 12 | - | 60 | |
| Al-Zn-Mg (7XXX) | 7003 | T5 | T5 | 315 | 255 | 15 | - | 85 |
| 7075 | O,T6 | T6 | 570 | 505 | 11 | 9 | 150 | |
| Product Name | Aliuminum Bar/ Aluminum Sheet/ Aluminum Coil / Aluminum Pipe | |
| Aluminum Bar | ||
| Standard | ASTM B221M, GB/T 3191, JIS H4040,etc. | |
| Material | 5052,5652, 5154, 5254, 5454, 5083, 2014,2014A,2214,2017,2017A,2117 | |
| 5086, 5056,5456, 2024, 2014, 6061, 6063,6082, etc. | ||
| Diameter | 6-800mm | |
| Length | 2m,3m,5.8m,6m,or as required | |
| Surface | Mill finish,polished,anodizing,brushing,sand blasting,powder coating,etc. | |
| Aluminum Sheet/Coil | ||
| Thickness | 0.15-200mm or as requeted | |
| Width | 1000mm, 1219mm, 1250mm, 1500mm,or as customer's request | |
| Length | 1000mm,1500mm,2000mm,or as as customer's request | |
| Material | 1050,1060,1100,3003,3004,3105,5052,5005,5083,6061,6063,7075,etc. | |
| Temper | O, H12, H14, H18, H22, H24, H32, H34, H36,T3,T5,T6,etc. | |
| Surface | painting, anti-rust or as customer's request | |
| Aluminum Pipe | ||
| Specification for round pipe | OD | 15mm-160mm |
| WT | 1-40mm | |
| Length | 1-12m | |
| Specification for square pipe | SIZE | 7X7mm- 150X150 mm |
| WT | 1-40mm | |
| Length | 1-12m | |
| Application | 1) Kitchenware, food and chemical products processing and storage devices; | |
| 2) Aircraft fuel tanks, oil pipe, rivets, wire; | ||
| 3) Cans cover, car body panels, steering plates, stiffeners, brackets and other components; | ||
| 4) Manufacturing trucks, tower building, ship, train, furniture, machinery parts, precision machining with the tubes, rods, shaped, sheet metal. | ||
| Mechanical Property | ||||||||
| ALUMINUM ALLOY | Grade | Normal Temper | Temper | Tensile Strength N/mm² | Yield Strength N/mm² | Elongation% | Brinell Hardness HB | |
| Plate | Bar | |||||||
| 1XXX | 1050 | O,H112,H | O | 78 | 34 | 40 | - | 20 |
| 1060 | O,H112,H | O | 70 | 30 | 43 | - | 19 | |
| Al-Cu (2XXX) | 2019 | O,T3,T4,T6,T8 | T851 | 450 | 350 | 10 | - | - |
| 2024 | O,T4 | T4 | 470 | 325 | 20 | 17 | 120 | |
| Al-Mn (3XXX) | 3003 | O,H112,H | O | 110 | 40 | 30 | 37 | 28 |
| 3004 | O,H112,H | O | 180 | 70 | 20 | 22 | 45 | |
| Al-Si (4XXX) | 4032 | O,T6,T62 | T6 | 380 | 315 | - | 9 | 120 |
| Al-Mg (5XXX) | 5052 | O,H112,H | H34 | 260 | 215 | 10 | 12 | 68 |
| 5083 | O,H112,H | O | 290 | 145 | - | 20 | - | |
| Al-Mg-Si (6XXX) | 6061 | O,T4,T6,T8 | T6 | 310 | 275 | 12 | 15 | 95 |
| 6063 | O,T1,T5,T6,T8 | T5 | 185 | 145 | 12 | - | 60 | |
| Al-Zn-Mg (7XXX) | 7003 | T5 | T5 | 315 | 255 | 15 | - | 85 |
| 7075 | O,T6 | T6 | 570 | 505 | 11 | 9 | 150 | |
